Heating M. 6 left
Heating inserts are modern steel fireplaces that meet all European standards, including BlmSchV 2, Ecodesign and Five Stars while also offering the highest efficiency rating of A+. Additionally, all our fireplaces are compatible with heat recovery systems (recuperation).
Most importantly, thanks to the highest quality 3mm thick P265GH boiler steel our fireplaces can be installed in warm, heat-accumulating enclosures, including hypocaust-type constructions which do not require convection grilles.
What sets up apart is that every component of our fireplaces is made from this premium boiler steel.
Moreover, the price of the fireplace includes adjustable legs and an innovative mounting system for the luft-type grille.
By maintaining the highest quality standards, we can offer the longest warranty on the market.

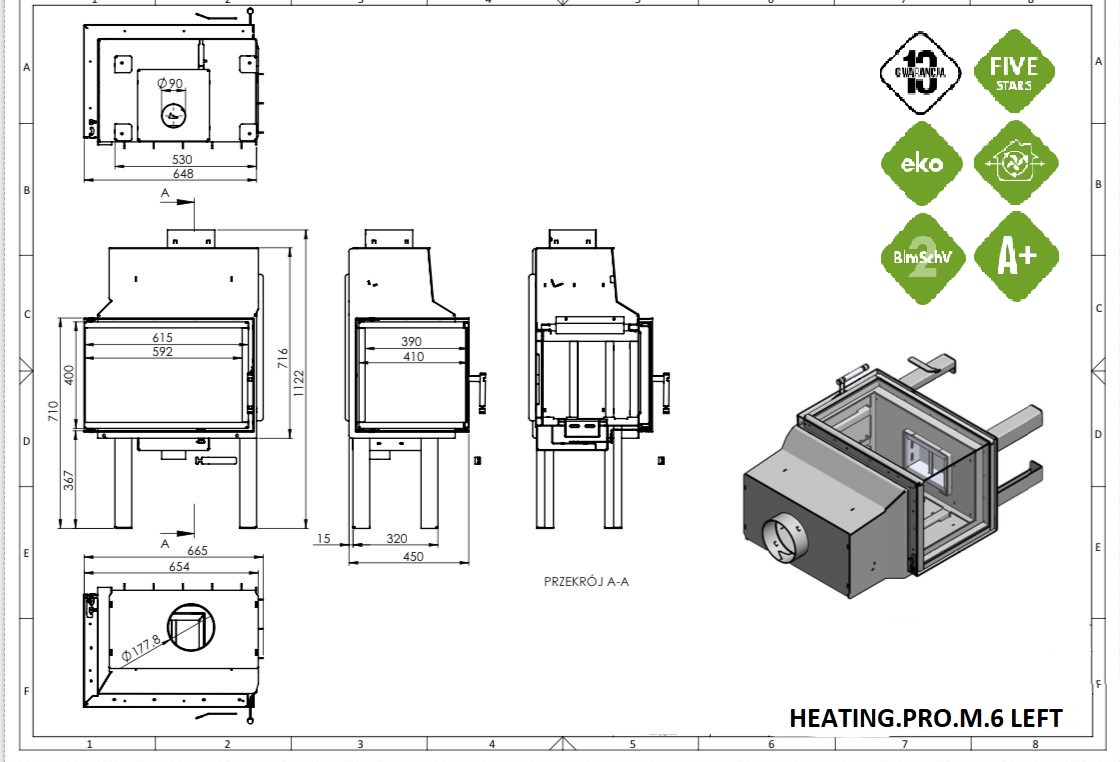

Technical data:
- thermal efficiency: 80,1%
- two deflectors
- insert with elevation feet as standard
- weight (kg) – 121
- power (kW) – 5-12
- flue diameter (mm) 180
- air inlet diameter (mm) 100
- height(mm) 1122
- width (mm) 665
- front glass height (mm) 400
- front glass widht (mm) 592
- side glass height (mm) 400
- side glass widht (mm) 390
- log length (mm) 60
- EsPM : 37
- EsOGC : 48
- EsCO : 673
- EsNOx : 95
- efficiency A+
- flue gas afterburning
- copper door locking system
- flue gas temperature at the outlet – 271 C
- fuel consumption 2 kg /1 h
- thick, gray 3cm chamotte with a two-year warranty
- thick cast iron ash pan with a two-year warranty
