Fireplace insert HEATING PRO M 6 corner left
- Nominal output 10 kW at an output range of 5–12 kW
- Class A+ and efficiency 80.1 %, declaration of conformity in Polish and English
- P265GH boiler steel plate, 3 mm, chamber lined with ceramic concrete, 3 cm
- Front glass 600 × 390 mm and side glass 400 × 390 mm on the left side
- Flue outlet 180 mm and air inlet 100 mm – suits homes with heat-recovery ventilation
How to choose the glass side?
Trade price list, availability and technical documentation are sent on request.
Request a trade offerHEATING PRO M 6 corner – characteristics
Which home is it for
HEATING PRO M 6 is a steel insert with an output of 10 kW for a home with a floor area of approximately 80–100 m². The side glass on the left side shows the fire from the side of the enclosure too; the mirror-image version with the glass on the right has identical parameters.
Body and combustion chamber
The body is made entirely of P265GH boiler steel plate, 3 mm thick. The combustion chamber is lined with ceramic concrete (3 cm), and the flue gases pass through two baffles. The ash pan is steel, and the door has a copper closing system. The steel construction allows for a heat-storage enclosure, including a hypocaust-type system.
Operating parameters
The flue gas temperature at the outlet is 271 °C, and hardwood consumption is around 2 kg/h. The insert takes logs up to 500 mm long. Emissions at nominal output: particulate matter 37, OGC 48, CO 673 and NOx 95 mg/m³ – within Ecodesign limits.
Documentation for the installer
A declaration of conformity is available for the insert in Polish and in English (EN 13229, Regulation (EU) 2015/1185, notified body No. 1450), along with a technical drawing with dimensions.
The version without a side glass is the HEATING PRO M 6 straight (80.7 %). Higher output, 11 kW: HEATING PRO M 7 corner.
HEATING PRO M 6 corner – video
Construction, combustion chamber and finishing detailsTechnical specification
Source: declaration of conformity for HEATING PRO M 6 corner and manufacturer's technical dataOutput and fuel
Emissions at nominal output
Dimensions and glass
Construction and compliance
Technical drawing
Click the drawing to open it in full resolution.Downloads

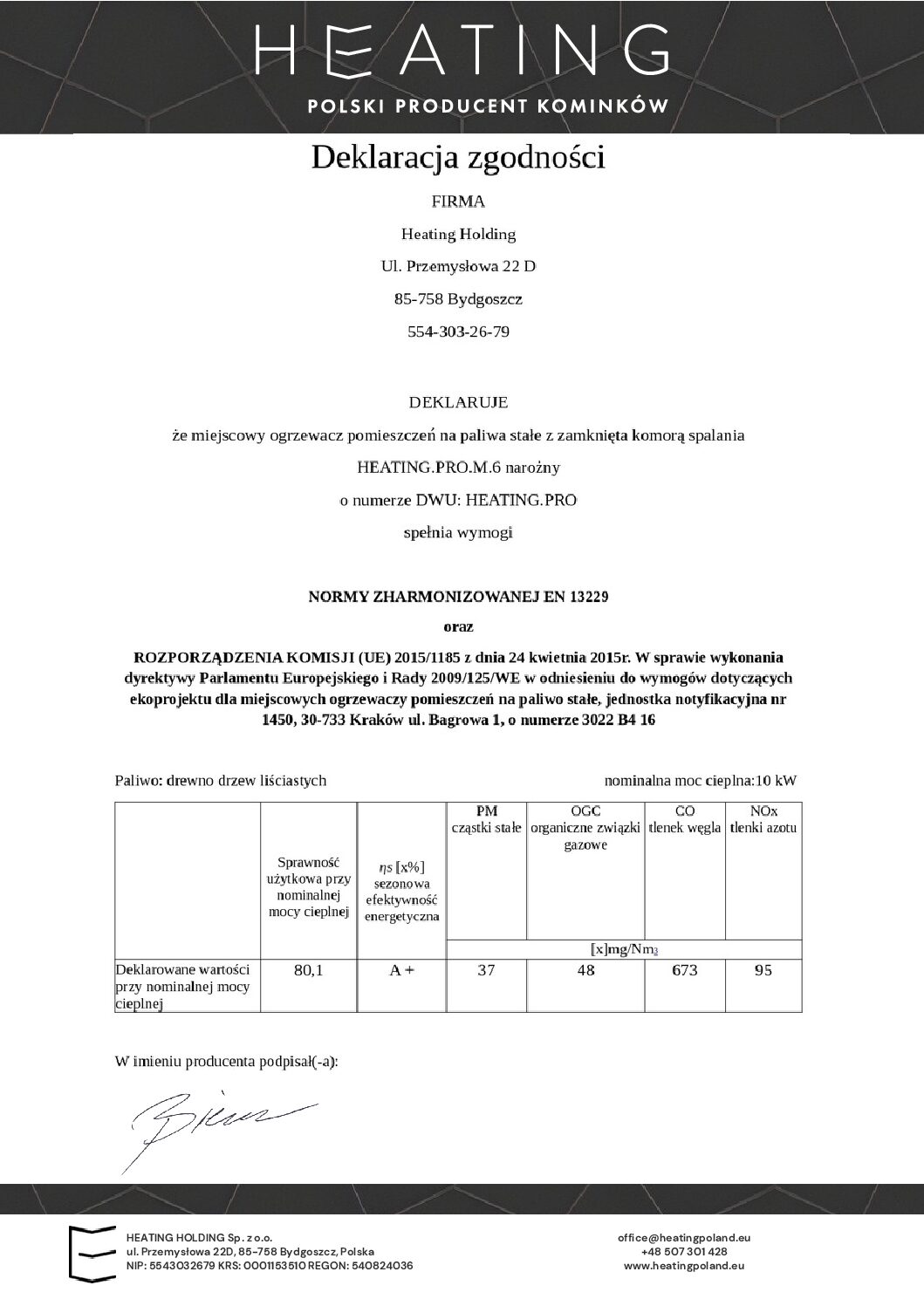

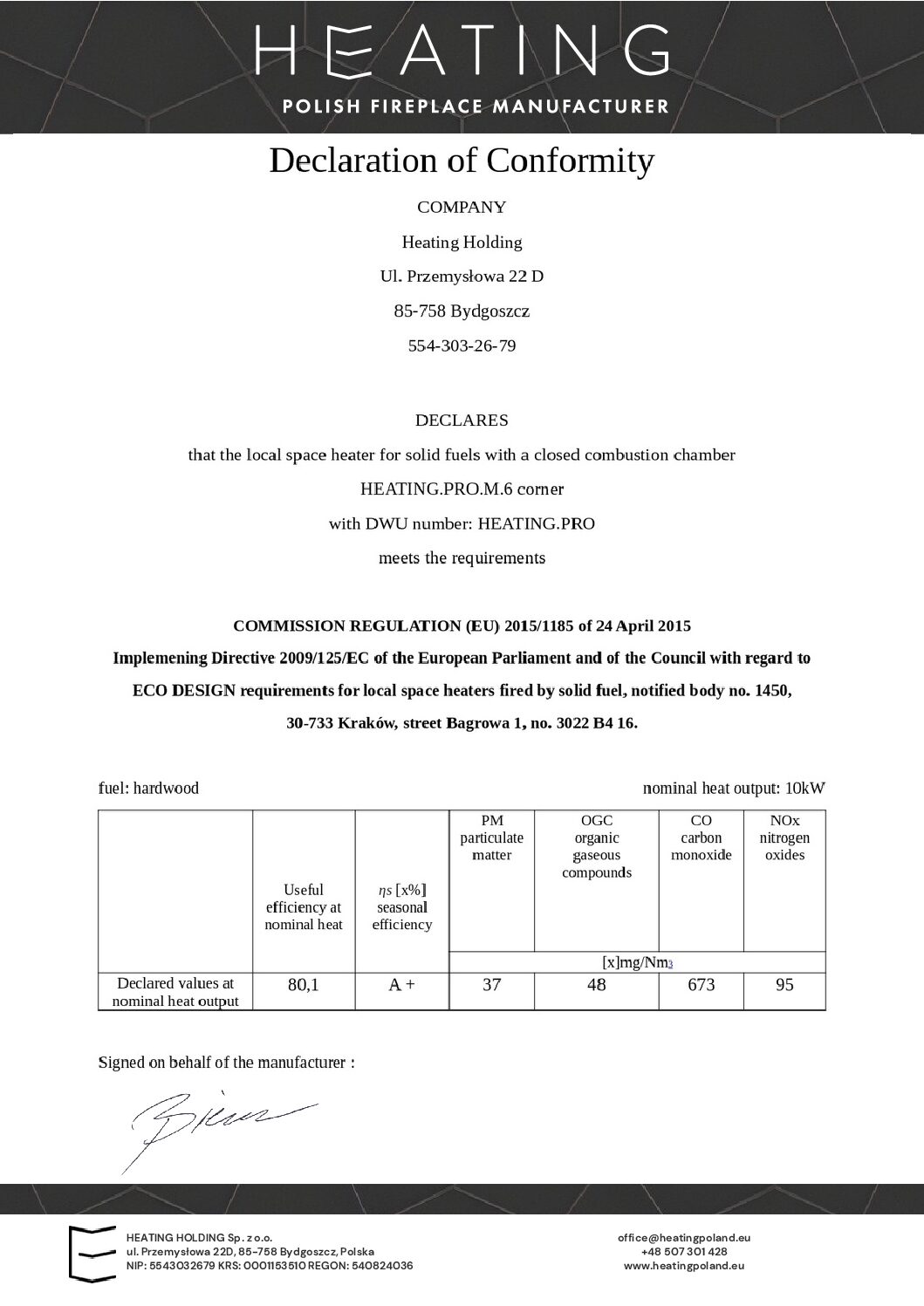

Declaration of conformity (PL)HEATING PRO M 6 corner · PDFDeclaration of Conformity (EN)HEATING PRO M 6 corner · PDFTechnical drawing – left versionJPGOther technical documents are available on request.
Questions and answers
Frequently asked questions about HEATING PRO M 6 corner. Can't find yours? Write to us.
Ask about this modelWhat are the dimensions of the HEATING PRO M 6 corner?
Height 1180 mm, width 670 mm, depth 470 mm, weight 110 kg. Front glass 600 × 390 mm, side glass 400 × 390 mm. Flue outlet 180 mm, air inlet 100 mm.
Which home does the HEATING PRO M 6 suit?
At 10 kW (range 5–12 kW), approximately up to 80–100 m² in a building with good insulation. The actual reach depends on insulation, room layout and how the warm air is distributed.
Does the insert work with heat-recovery ventilation?
Yes. The insert is suited to homes with heat-recovery ventilation – the 100 mm combustion air inlet is routed outside the building.
Is there a declaration of conformity in English?
Yes. The declaration of conformity for the HEATING PRO M 6 corner can be downloaded in Polish and in English in the documents section. It confirms compliance with the EN 13229 standard and Ecodesign Regulation (EU) 2015/1185.
Left or right – what is the difference?
Only the position of the side glass. Both versions have the same output, efficiency, emissions and dimensions – choose whichever suits the enclosure layout.
What is the difference between the HEATING PRO M 6 and the HEATING PRO M 7?
The HEATING PRO M 6 has 10 kW, a front glass panel 600 mm and takes logs up to 500 mm. The HEATING PRO M 7 has 11 kW, a glass panel 740 mm and takes logs up to 700 mm. Both models are class A+.
How do I order larger quantities?
Send an enquiry through the form at the bottom of the page, or contact the sales department: tel. +48 507 301 323, m.bienias@heatingpoland.eu. Trade price list and availability on request.
Similar models
All: steel inserts
| Parameter | HEATING PRO M 6 corner | HEATING PRO M 6 straight | HEATING PRO M 7 corner | HEATING PRO M 7 straight |
|---|---|---|---|---|
| Nominal output | 10 kW | 10 kW | 11 kW | 11 kW |
| Efficiency | 80.1 % | 80.7 % | 80.7 % | 80.5 % |
| Energy class | A+ | A+ | A+ | A+ |
| Weight | 110 kg | 114 kg | 130 kg | 123 kg |
| Dimensions (H × W × D) | 1180 × 670 × 470 mm | 1152 × 676 × 470 mm | 1150 × 820 × 470 mm | 1200 × 850 × 470 mm |
| Flue outlet | 180 mm | 180 mm | 180 mm | 180 mm |
| CO (mg/m³) | 673 | 1243 | 1223 | 1003 |
