HEATING fireplace inserts with a cast iron body: the corner PRO EKO 10 kW, the straight-glass EKO 10, the three-sided PRO 3 and the PRO PW with a water jacket for central heating. 10 to 14 kW, energy class A.
Left glass
Right glass
Compare output, efficiency and dimensions of all models in one table, or contact the sales department.
| Model | HEATING PRO EKO 10 kW | HEATING EKO 10 | HEATING PRO 3 three-sided | HEATING PRO PW with water jacket |
|---|---|---|---|---|
| Nominal output | 10 kW | 10 kW | 11.6 kW | 14 kW |
| Efficiency | 76 % | 70 % | 79.3 % | 69 % |
| Energy class | A | A | A | A |
| Weight | 93 kg | 86 kg | 115 kg | 163 kg |
| Dimensions (H × W × D) | 622 × 655 × 410 mm | 622 × 660 × 350 mm | 711 × 691 × 462 mm | 799 × 691 × 471 mm |
| Flue outlet | 180 mm | 180 mm | 200 mm | 200 mm |
| CO (mg/m³) | – | 1981 | 1219 | 1750 |
A cast iron fireplace insert heats up more slowly than a steel one, but stores heat and keeps releasing it long after the fire has gone out. Cast iron is also resistant to deformation at high temperature. This is why people who light fires regularly and want steady, long-lasting heat, rather than a quick top-up, choose a cast iron fireplace.
HEATING cast iron inserts are built-in appliances, not free-standing stoves. All of them have energy class A, a 100 mm combustion air inlet, and run on wood.

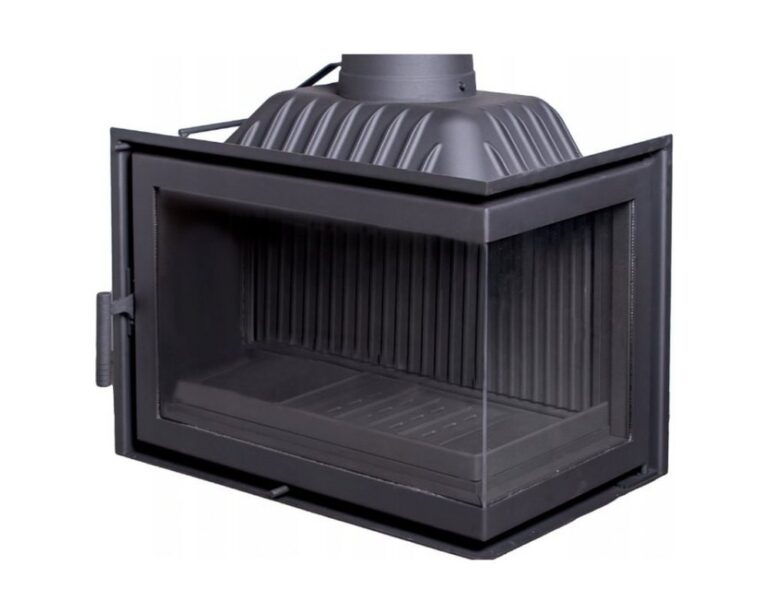

The HEATING PRO EKO 10 kW is a corner cast iron fireplace with a side glass panel on the left or right – for an enclosure where the fire should be visible from the side. The HEATING EKO 10 has a single straight glass panel and the smallest dimensions in the range. The HEATING PRO 3 is a three-sided insert for a peninsula enclosure, with the fire visible from three sides. The HEATING PRO PW is a cast iron fireplace with a water jacket: of its 14 kW output, 7.5 kW goes to the central heating system, and the jacket holds 31 l of water.
A water jacket lets you heat the whole house, not just the room with the fireplace: the insert connects to the central heating system and feeds radiators or underfloor heating, and with the right setup, domestic hot water too. The installation needs circulation pumps, a controller and a backup power supply (UPS or generator), so the scope of the connection should be agreed with a heating engineer.
Cast iron holds heat for longer, steel releases it faster and allows a heat-storage enclosure without convection grilles. If you are looking for a class A+ insert with an EN 13229 and Ecodesign declaration, see the HEATING steel inserts made of 3 mm P265GH boiler steel plate.
Yes – every HEATING cast iron insert has a 100 mm combustion air inlet that is routed outside, so the insert does not draw air from the room.
The HEATING PRO EKO 10 kW – it has a side glass panel on the left or right, 10 kW of output and compact dimensions of 622 × 655 × 410 mm.
With 7.5 kW delivered to the water circuit, the insert covers the heating needs of a four-person family home or larger; the final sizing requires a technical consultation and a check of the installation.
The HEATING EKO 10 and PRO 3 have a cast iron body and chamber lining, while the PRO PW has a vermiculite lining. No model requires firebrick to be replaced.
Yes. We work with wholesalers, fireplace showrooms and installation companies. Pricing and availability are provided on request: +48 507 301 323, m.bienias@heatingpoland.eu.
Manufacturer of fireplace inserts from Bydgoszcz, Poland. Since 1978 we have designed and produced steel and cast iron inserts for distributors, fireplace showrooms and installation companies across Europe.
